6.3 - Filter Transorm
Clean Up the Dataset
Before we import the orders into Sage300, we want to filter out the miscellaneous charge lines without a value.

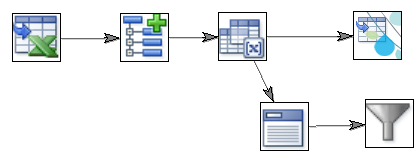

- Drag a filter transform and connect it to the Aggregate transform.
- Double click to open its setup.

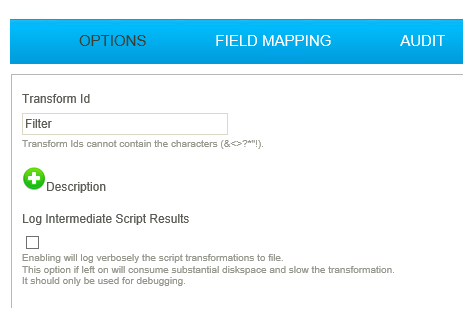

- Rename its Transform Id to a recognisable name.
- For training enter: Filter
- Click on the Field Mapping tab, and select the OrderDetails transaction.

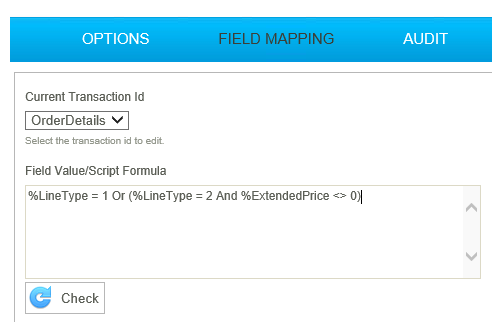

- Enter the field formula:
- %LineType = 1 Or (%LineType = 2 And %ExtendedPrice <> 0)
The result of the formula must evaluate to a True or False value, where a False value will mean the record is removed (or filtered) from the dataset.
- Refresh.

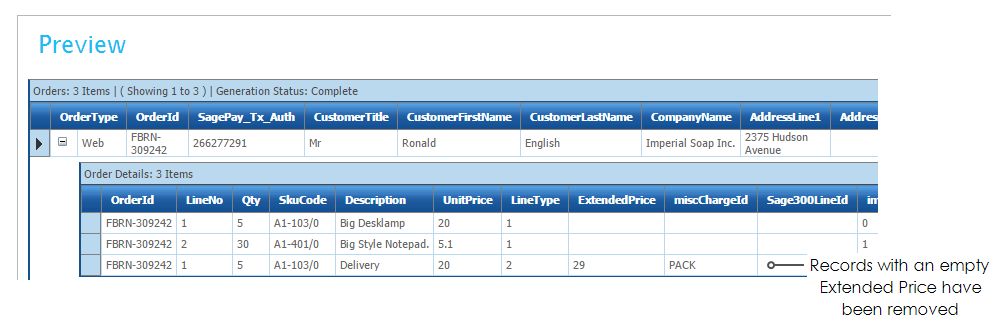

The first Order will have ‘Assembly’ and ‘TwoManSupplement’ charges removed, as their values were empty.
- Press Apply to save the transform and close.
