Transform Execution & Data Flow

Each integration is made up of one or more transforms which are executed in their specified order sequence.

Data is processed in batches, which are transformed sequentially.

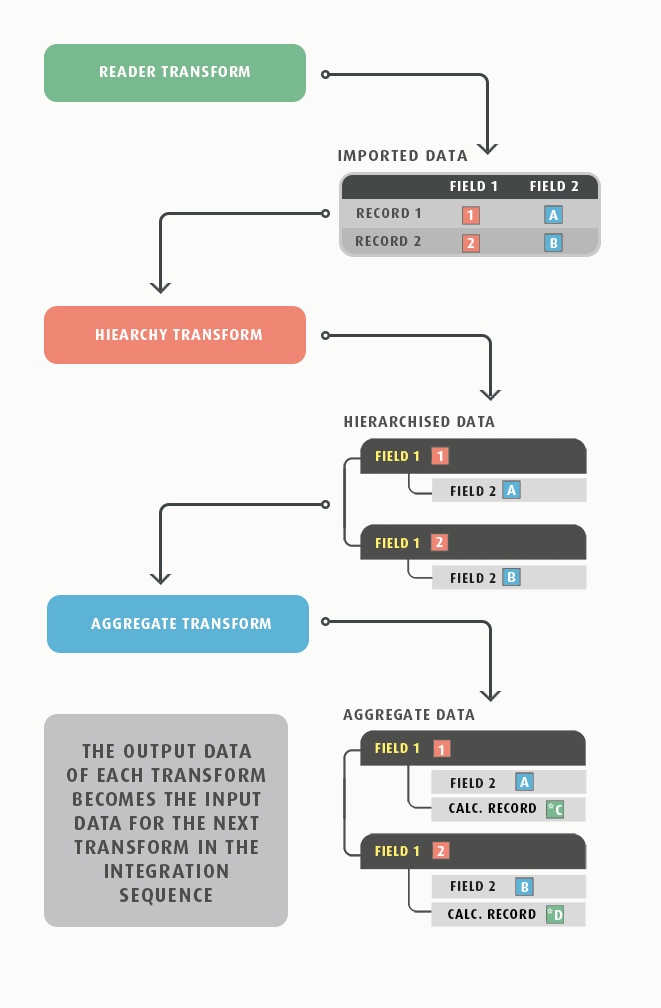

When one transform completes, the resultant dataset becomes the input for the next transform in the sequence. In this way, all integration instances (i.e. transforms) are treated by IMan as autonomous units.

It is important to note that although IMan can run multiple batches of data through the transforms of an integration concurrently, these transforms are working independently of each other.

Priority

Parent transforms that have more than one output, require that a priority is set to tell IMan in which order to process the child transforms.

The transform priority drop down is displayed only when the parent transform in use has more than one output.
The priority sets the order in which the child transforms are executed.

If the priority of a transform is changed, the transforms related to it automatically adjust accordingly.
