Http Headers

HTTP headers allow the client and the server to pass additional information with the request or the response.

IMan allows you to define headers at several levels of a request: authorisaton; webservice behaviour and the actual request.

Each level of the request takes precedence over the lower level, where the webservice behaviour headers of the same name will take percedence over the authorisation headers, and the request headers over the webservice behaviour headers.

Adding/Modifying/Deleting Headers

Headers are added or deleted by clicking the add and icons respectively, existing headers can be edited by double clicking the relevant entry.

Header Setup

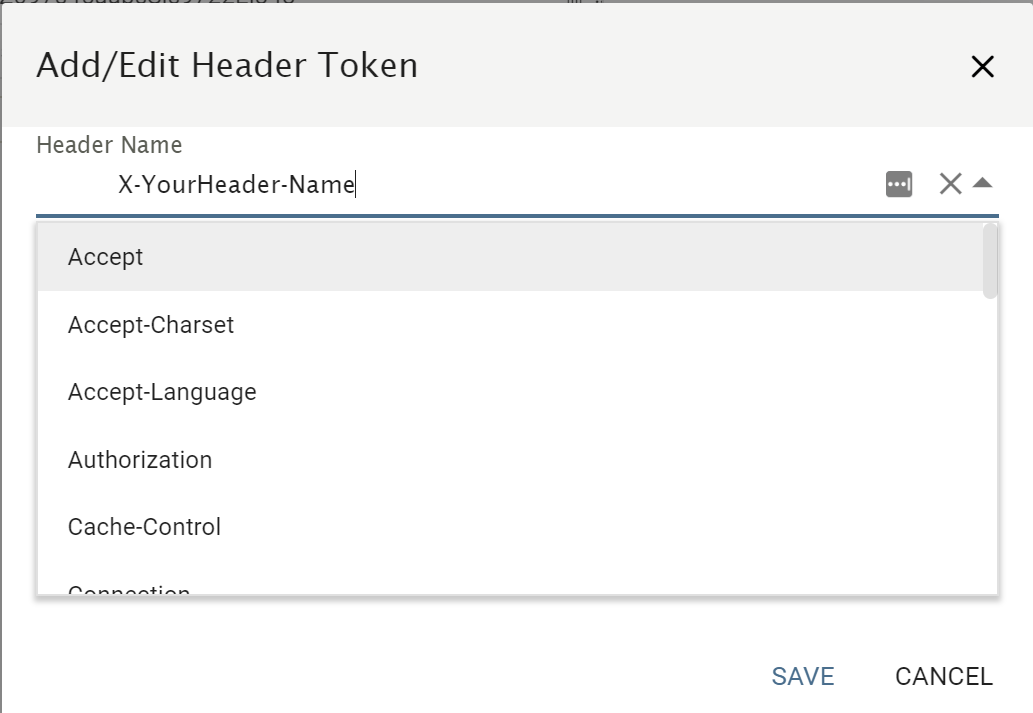

Header Name

This is the header id or name. The header name can either be picked from a drop down of well known headers or entered manually.

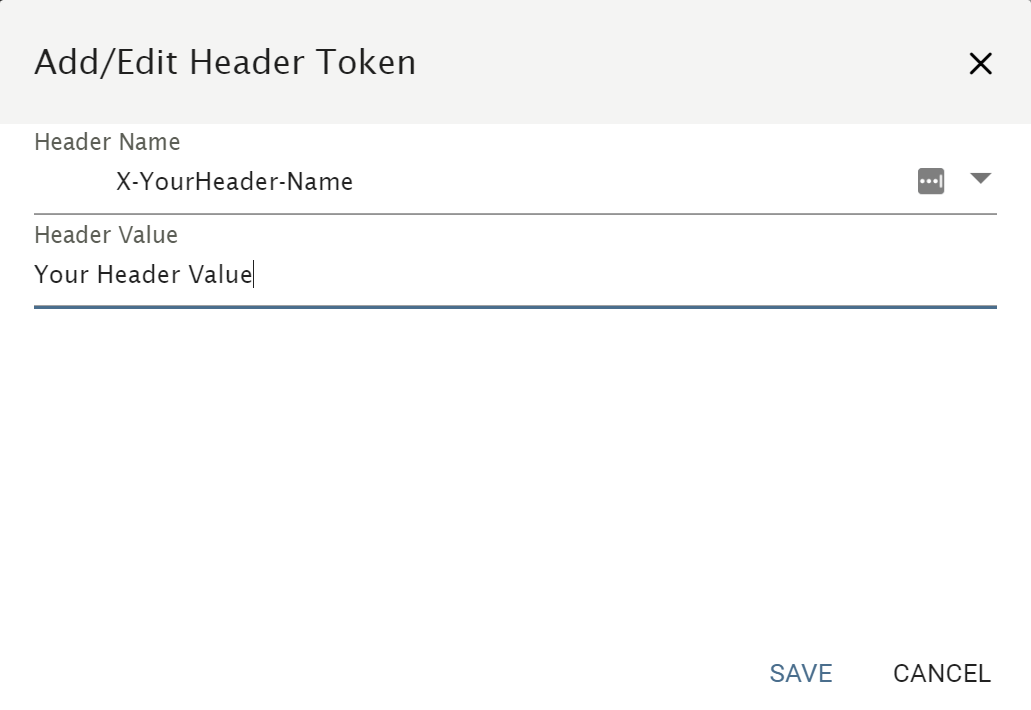

Header Value

This is the corresponding value to the header. The header value can be optionally left empty.

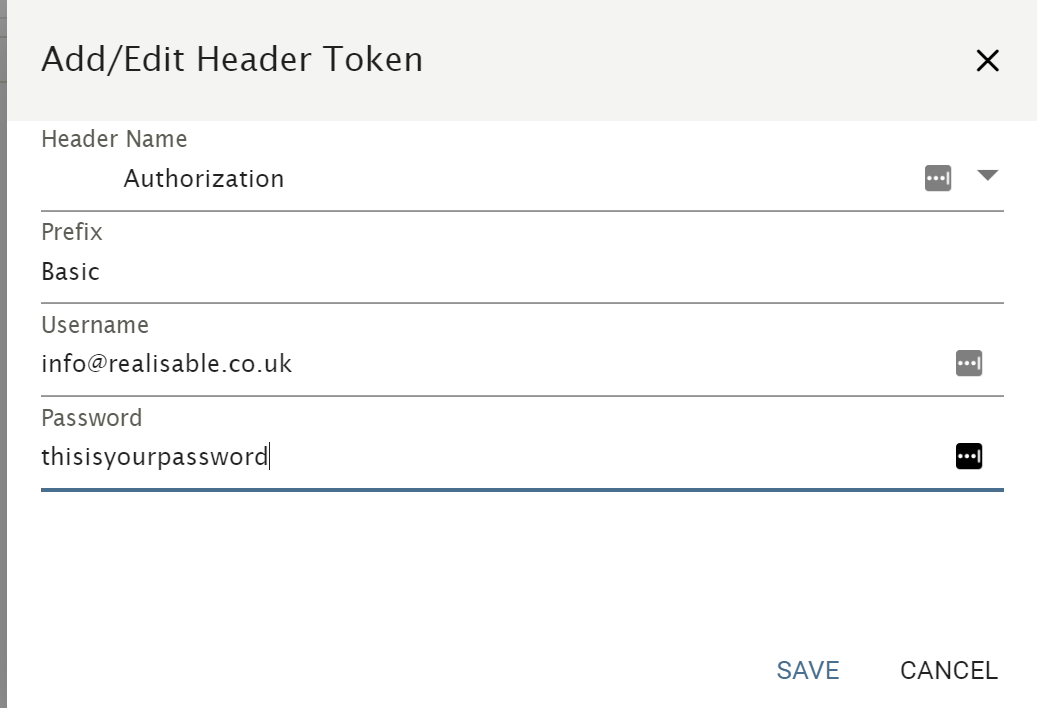

Authorization Header

The Authorization header has specific handling.

The Authorisation Type drop has three values which dictate how the Authorise header value is entered.

• Basic
  • Allows username and password to be encoded in Base64 format (RFC 7617).

    • Prefix

    • This is the prefix to any Base64 encoded value.

    • Username

    • The user name or id.

    • Password

    • The password.

• Bearer
  • Passes a token after some prefix (typically Bearer). For example, Authorization: Bearer <value>

    • Prefix

    • The value before the token. E.g. Usually Bearer.

    • Value

    • The token or value.

• Raw
  • Will pass the value as-is, without a prefix or encoding.

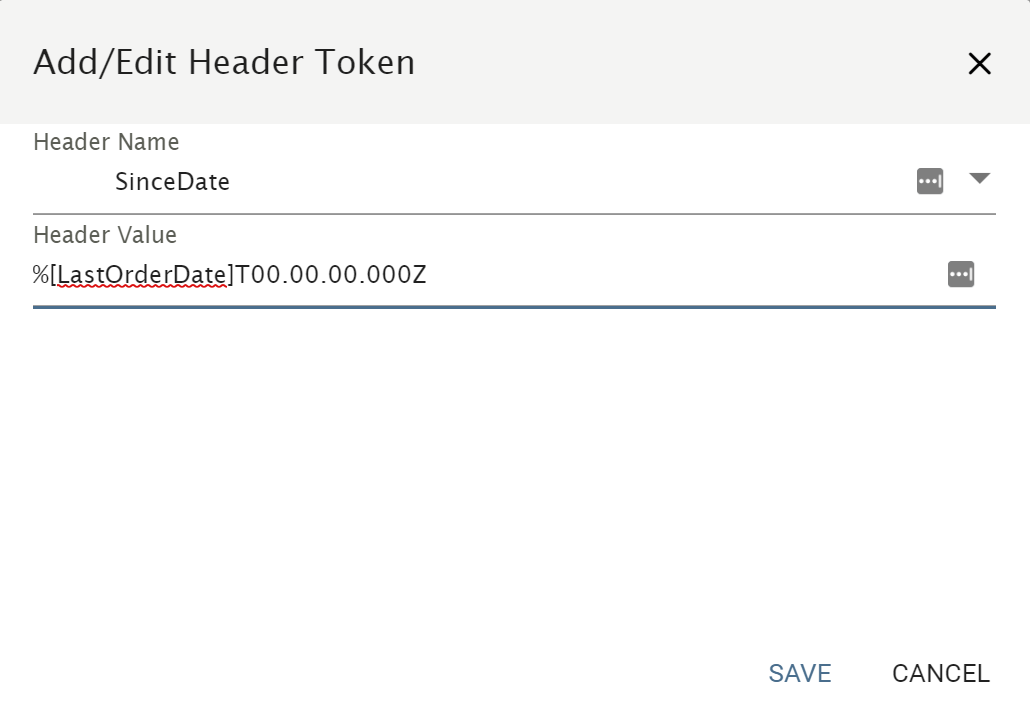

Expando Field Support

Webservice Lookups and Writers can parameterise Http Headers with Expando Fields.
