Options (File Layout/Query Setup) Tab
The Options tab (alternatively File Layout/Query Setup) contains controls for the transform which are not transaction and field specific.
The controls change depending on the transform being configured.
Examples
- The Connector transforms each have settings to specify the input configuration.
- The Filter transform has an Option tab that can only change the Transform Id.
- For Reader transforms, the File Layout tab records the path to the import file's location, and settings specific to the reader being used.

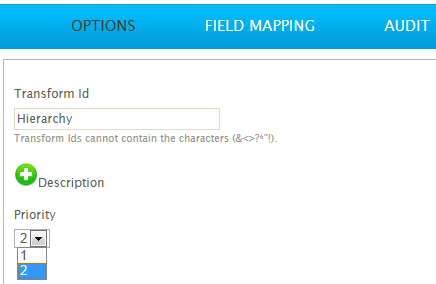

Transform > Options Tab
Transform Id
The transform Id is the unique identification for the transform.
The transform Id appears on the Audit Report so it is useful to set this as something the end-users will recognise.
Description
Provides a means to record any specific logic or details in the processing.
This description appears as a tooltip when hovering over the transform's icon within the designer, to help with easy identification for users.
Transform Priority
When more than one output, the Transform Execution & Data Flow order needs to be set here.
