2016 and Above

System Connector Setup

Introduction

This section describes how to setup IMan and install Sage for IMan to connect successfully. This is necessary to:

  • Sage200 introduced Windows Authentication in version 2013. This means IMan must be set to run under the windows user you wish to connect to Sage200 with.
  • In 2016 Sage was then installed into the user's local directory.

Windows, Sage User & IMan Setup

Please ensure that Sage200 has had the relevant user Security setup and that IMan has been set to run under the same user.

Sage Installation

  1. Login as the Windows user you plan to run IMan under i.e. the Sage user.
  2. Install Sage.
  3. Login successfully to Sage and remain logged in.
  4. You will need to copy the Sage.Reporting.Engine.Integration.dll found in the Sage installation directory to the C:\IMan\Addins (or wherever you set the IMan shared data during installation).

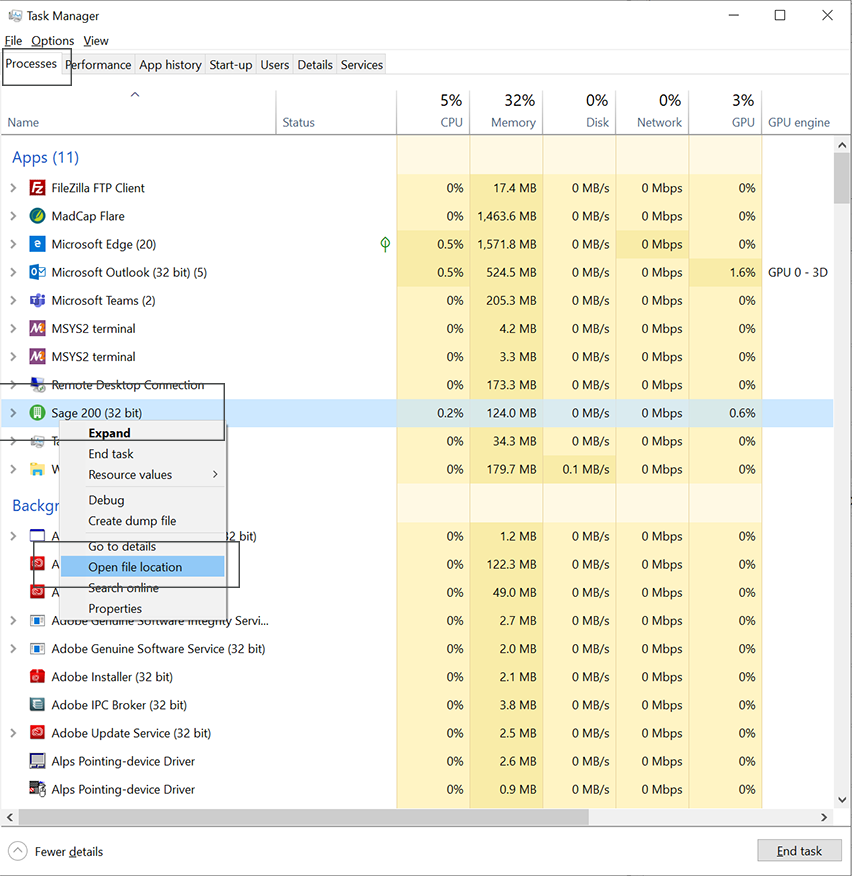

    The Sage installation directory can be found by:
    • Open Task Manager.
    • Click Processes tab and find the Sage200 Application.
    • Right click the Sage 200 application.
    • Open File Location.

  5. Restart the IMan services.

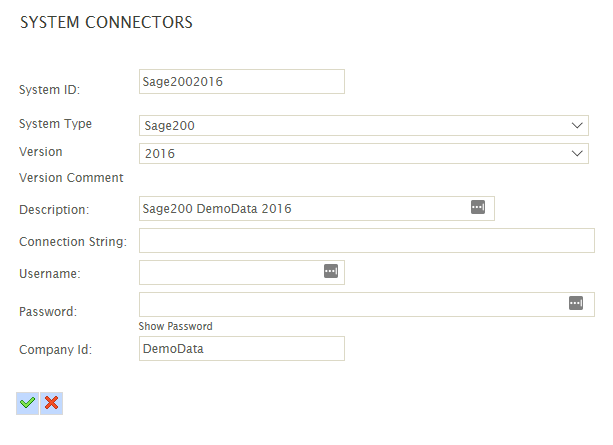

IMAN Connector Setup

  1. System ID
    • The internal id to assign the system connector.
  2. System Type
    • Set to Sage200
  3. Version
    • Select relevant version for the Sage version you are connecting.
    • Please note that the 2017 version will cover all current versions (2017 to 2019).
  4. Description
    • A description for the connection.
  5. Connection String
    • Leave blank
  6. Username
    • Leave blank (the username is controlled by the windows user IMan is configured to run under).
  7. Password
    • Leave blank.
  8. Company
    • The Sage200 Company Name (not the Database Name) as per the Sage System Administration.
