HTTP Controller

HTTP Controller provides the means to read from/write to an http or https URL.

Readers will perform a GET operation and writers perform a POST operation to the specified URL.

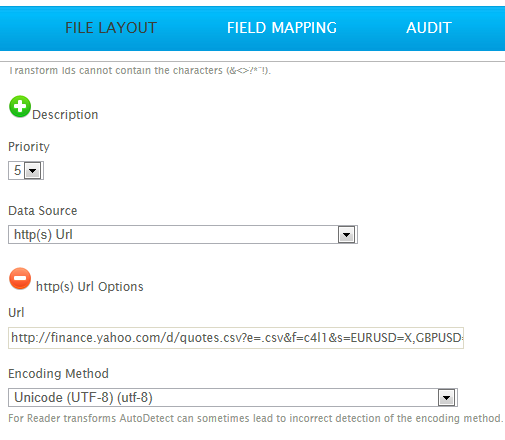

URL (Displayed in Read & Write)

The URL to read from or write to. The URL is a static value in both the Reader and Writer

Encoding Method (Write Only)

The character encoding method for the data being retrieved or exported.

See Character Encoding for more details.

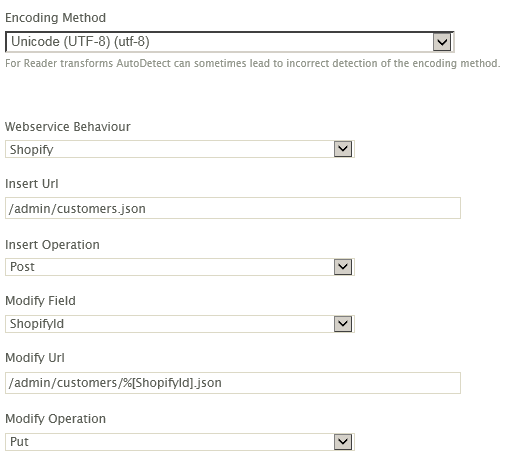

JSON & Xml Write Transforms

Encoding Method

The character encoding method for the data being retrieved or exported.

Webservice Behaviour

The webservice behaviour used for authentication and the base Url.

Insert Url

This may be only the post path or the full Url. The path is combined with Base Url to form the full Url.

The insert url may be parameterised by specifying a field placeholders. The placeholders must correspond to the transaction selected in ‘Create File Per Transaction’ drop down of the corresponding Write transaction.

Insert Operation

The operation to perform to perform an insert. By default this is set to POST which is typical of almost all webservices.

Modify Field

Use this drop down to specify when modify operations are performed.

When set the selected field is checked for a non-empty value. Where the value is non-empty the modify operation & modify url are used, allowing you to modify an existing resource. If either this property is empty or the selected field’s value is empty the insert operation & url are used.

Modify Operation

The operation to perform to perform an insert. By default this is set to PUT which is typical of most webservices.

Modify Url

This may be only the modify path or the full Url. The path is combined with Base Url to form the full Url.

The modify url may be parameterised by specifying a field placeholders. The placeholders must correspond to the transaction selected in ‘Create File Per Transaction’ drop down of the corresponding Write transaction.

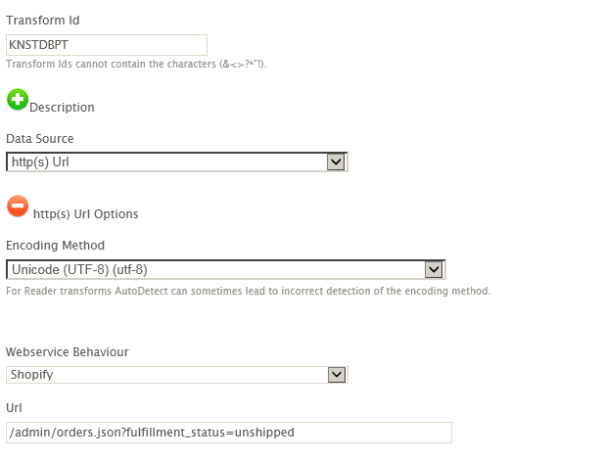

Json & XML Read Transforms

Encoding Method

The character encoding method for the data being retrieved or exported.

Webservice Behaviour

The webservice behaviour used for authentication and the base Url.

Insert Url

This may be only the query path or the full Url. The Query path is combined with Base Url to form the full Url.
